CAIG Rosin Soldering Flux

Recommended for electrical and electronic soldering applications

This paste flux meets DOD-STD-2000 & also the IPC-J-004 standard for type ROL0,
the lowest residue corrosivity category

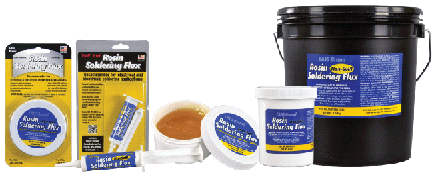

CAIG Rosin Soldering Flux

TYPE RSF-R80

+ RSF Rosin Flux is a mildly-activated rosin ux
that is considerably more active than water-white rosin

+ Activity closely approaches that of fully activated rosins

Conforms to all of the requirements of Type RMA

+ Rosin Core, Mildly Activated of Federal Specification QQ-S-571

+ The RSF paste ux meets DOD-STD-2000
& also the IPC-J-004 standard for type ROL0,
the lowest residue corrosivity category

+ Thermal stability enabling excellent wetting and reduced
carbonization at soldering temperatures

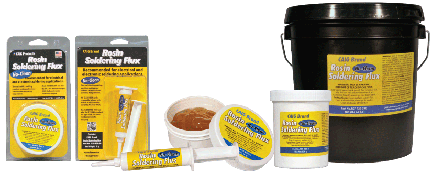

CAIG Rosin NO-CLEAN Soldering Flux

TYPE RSF-R39

+ RSF-R39 Rosin No Clean Flux is a mildly-activated rosin ux
that is considerably more active than water-white rosin

Recommended for electrical and electronic soldering applications

+ Excellent for P.C.B repair and rework

+ No refrigeration necessary

+ Can be safely left on the circuit board after reflow without cleaning

+ Appearance: Smooth and tacky amber paste

+ Viscosity (Malcom): Typically 200 – 280 at 5 rpm @ 25°C

+ Tack strength (per IPC J-STD-004): Initial TBD 6 hr @ 50%RH TBD 24 hr @ 50%RH TBD Fineness of Grind < 10 micrometer Acid Number (mg KOH/g) 90-110 + Halide content ROL0, per IPC J-STD-004, Halide free

+ Halogen content None intentionally added

+ IPC SIR J-STD-004B Pass

+ Bellcore SIR (pass > 1011) Pass, 8.9X109, Ohms at 96 hours 2.2X1010 at 500 hours Pass/Fail = final > initial/10)
